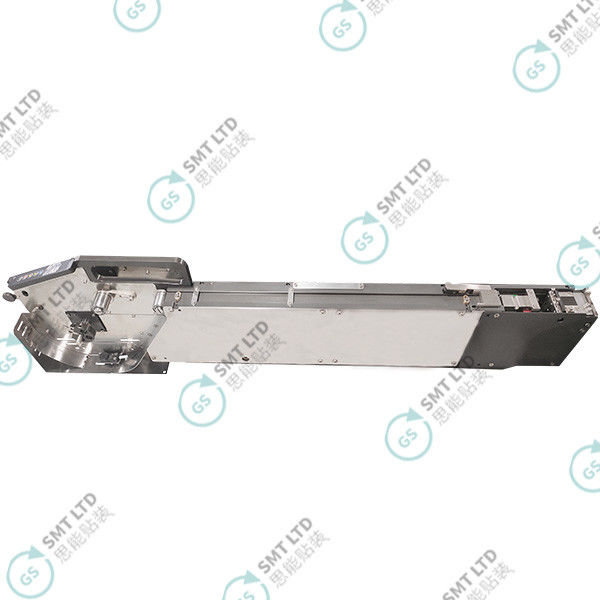

Tin Chip Feeder (GS-PBD2402)

Name: Tin Chip Feeder (GS-PBD2402)
Brand: Global Soul Limited
SKU: GS-PBD2402
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS

Model Number: GS-PBD2402

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 1000*100*350mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Product Specification:	GS-PBD2402	Overall Dimensions (length * Width * Height):	87855233mm
Weight:	8.5 KG	Working Voltage:	DC42V(1.5~2.5A)【Draw Power From The Surface Mount Technology (SMT) Machine】
Gas Source Requirements:	0.5-0.6MPa【Take Gas From The Surface Mount Technology (SMT) Machine】	Working Current:	Feed Less Than 1.5A
Feeding Speed:	0.6 S/Pcs【Cut Off Length ≥Long Time】	Operation Panel:	0.96-inch TFT Color Screen 80*160 Pixels
Feeding Length:	2.2～18mm【Customized. Fine Adjustment Within ±0.1mm】	Thickness Of Tin Sheet:	Customized, Not Adjustable【Customized. Not Adjustable】
Width Of Tin Sheet:	2~12.1mm【Customized. Not Adjustable】	Tin Sheet Material:	SnAg3Cu0.5【Both Cutting And Deformation Have An Impact】
Feeding Method:	Mechanical Clamping	Condition:	New

Product Specification:	GS-PBD2402
Overall Dimensions (length * Width * Height):	87855233mm
Weight:	8.5 KG
Working Voltage:	DC42V(1.5~2.5A)【Draw Power From The Surface Mount Technology (SMT) Machine】
Gas Source Requirements:	0.5-0.6MPa【Take Gas From The Surface Mount Technology (SMT) Machine】
Working Current:	Feed Less Than 1.5A
Feeding Speed:	0.6 S/Pcs【Cut Off Length ≥Long Time】
Operation Panel:	0.96-inch TFT Color Screen 80*160 Pixels
Feeding Length:	2.2～18mm【Customized. Fine Adjustment Within ±0.1mm】
Thickness Of Tin Sheet:	Customized, Not Adjustable【Customized. Not Adjustable】
Width Of Tin Sheet:	2~12.1mm【Customized. Not Adjustable】
Tin Sheet Material:	SnAg3Cu0.5【Both Cutting And Deformation Have An Impact】
Feeding Method:	Mechanical Clamping
Condition:	New

Product Description

Tin Chip Feeder (GS-PBD2402)

The tin sheet feeder is a component supply device that cuts the rolled tin sheets one by one according to the set length and supplies them to the surface mount machine

Tin Chip Feeder (GS-PBD2402) 0

Specification

Tin Chip Feeder (GS-PBD2402) 1

Tin Chip Feeder (GS-PBD2402) 2

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
