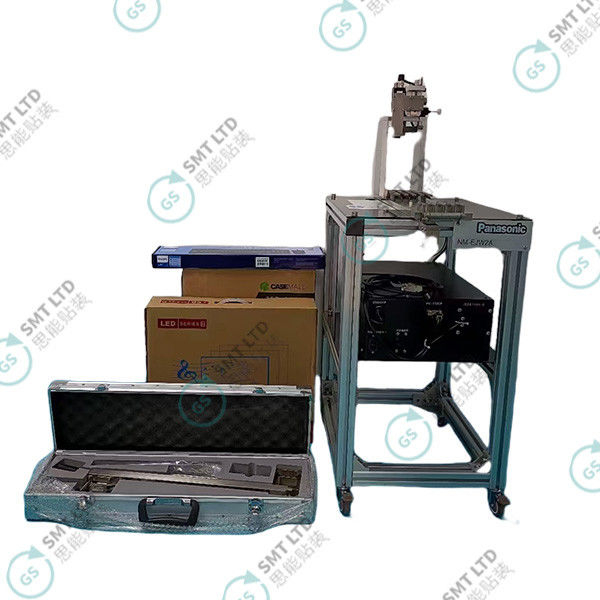

Panasonic SMT Feeder Calibration Jig NM-EJW2A 400x500x1100mm

Name: Panasonic SMT Feeder Calibration Jig NM-EJW2A 400x500x1100mm
Brand: Global Soul Limited
SKU: NM-EJW2A
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Brand Name: Panasonic

Model Number: NM-EJW2A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+PCS

Packaging Details: 400*500*1100mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+PCS+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Panasonic Feeder Calibration Jig, NPM Feeder Calibration Jig


Model Number:	NM-EJW2A	Application:	Calibrate Adjust CM402,CM602,NPM Feeder
Dimention:	4005001100mm	Power:	100-240V 50/60Hz
Adjusted Accuracy:	≦0.02mm	Calibrated Accuracy:	≦0.05mm
Jig Tape Set:	1set(8mm,12mm,16mm,24mm,32mm,master Jig	Weight:	60kg

Model Number:	NM-EJW2A
Application:	Calibrate Adjust CM402,CM602,NPM Feeder
Dimention:	4005001100mm
Power:	100-240V 50/60Hz
Adjusted Accuracy:	≦0.02mm
Calibrated Accuracy:	≦0.05mm
Jig Tape Set:	1set(8mm,12mm,16mm,24mm,32mm,master Jig
Weight:	60kg

Product Description

SMT NPM Panasonic Feeder Calibration Jig CN604/402/NPM NM-EJW2A

Overview of Panasonic SMT Feeder Calibration Jig NM-EJW2A

The Panasonic SMT Feeder Calibration Jig NM-EJW2A ensures precise calibration of SMT feeders for optimal performance in electronics manufacturing.

Usage

Setup: Position the feeder onto the calibration jig securely.
Calibration Process: Use the jig to adjust the feeder's alignment and tension settings.
Verification: The jig verifies that the feeder is delivering components accurately to the pick-up point.
Adjustment: Make necessary corrections to any misalignments or feeding issues.

Purpose

Accuracy: Ensures precise feeder calibration for accurate component placement on PCBs.
Efficiency: Reduces downtime with quick and easy feeder calibration.
Quality Control: Maintains consistent production quality by keeping feeders within specified tolerances.
Longevity: Extends feeder lifespan by preventing excessive wear through regular calibration.

Benefits

Enhanced Productivity: Minimizes errors for smoother production runs and less rework.
Cost Savings: Reduces component misplacement and machine stoppages to lower production costs.
Consistency: Ensures uniform component placement for high-volume manufacturing.

Conclusion

The NM-EJW2A calibration jig is essential for maintaining precision and efficiency in SMT production lines. By ensuring proper feeder calibration, it supports consistent quality and optimal performance in electronics manufacturing.
