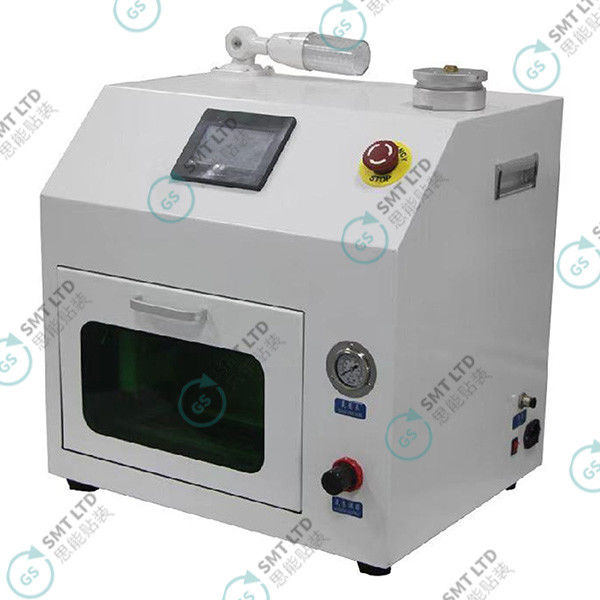

Automatic SMT Nozzle Cleaner Machine 30-Tray Capacity 440×500×530mm

Product Details

Place of Origin: China

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 550*600*600mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                industrial smt nozzle cleaner, industrial smt ultrasonic cleaner


Equipment Size:	440×500 ×530 (mm)	Equipment Weight:	35KG
Cleaning Fluid Type:	Industrial Pure Water	Cleaning Liquid Consumption:	≤100ml/min
Use Fluid - Air Source:	Compressed Air	Operating Pressure Range:	0.5-0.65Mpa (when Cleaning)
Injection Pressure:	≤0.4Mpa	Air Consumption:	500NL/min Or Less
Voltage:	AC220V 50HZ	Rated Power Consumption:	Maximum 100W
Suction Tray Size:	30	Condition:	New

Equipment Size:	440×500 ×530 (mm)
Equipment Weight:	35KG
Cleaning Fluid Type:	Industrial Pure Water
Cleaning Liquid Consumption:	≤100ml/min
Use Fluid - Air Source:	Compressed Air
Operating Pressure Range:	0.5-0.65Mpa (when Cleaning)
Injection Pressure:	≤0.4Mpa
Air Consumption:	500NL/min Or Less
Voltage:	AC220V 50HZ
Rated Power Consumption:	Maximum 100W
Suction Tray Size:	30
Condition:	New

Product Description

Automatic Suction Nozzle Cleaning Machine

Product Description

The automatic nozzle cleaning machine utilizes a multi-nozzle jet cleaning method with fluid mechanics to break water into fine mist particles. These particles are sprayed at supersonic speed to form a continuous energy field that effectively removes dirt from nozzle surfaces and interiors. The system operates using only industrial pure water, requiring no solvents.

Key Features

Cleans 30 nozzles simultaneously with high efficiency
Replaces manual cleaning and solves ultrasonic cleaning limitations
Supersonic atomized water jet technology thoroughly cleans all impurities
Prevents nozzle aperture reduction during cleaning
Achieves over 99% cleaning rate, extending nozzle lifespan
Bilingual interface (Chinese/English) with intuitive touch screen controls
Environmentally friendly operation using only pure or deionized water
Universal compatibility with all placement machine nozzles
Exceptional cleaning performance for cruciform, I-shaped, and special nozzles

Working Principle

High Pressure Jet Technology: Generates 3-10μm water mist particles capable of cleaning even the smallest nozzle apertures.

Pulse Power: Delivers supersonic (360m/s) pulsed jets at 30 pulses per second, creating sustained impact to dislodge all contaminants.

Cleaning Method Comparison

Method	Advantages	Disadvantages
Manual Cleaning	-	Low efficiency, cannot clean internal surfaces, risks damaging nozzle with tools
Ultrasonic Cleaning	Low cost, high efficiency	Causes nozzle collisions, damages coatings, incomplete cleaning, ineffective for 01005 nozzles
Nozzle Cleaning Machine	Extends nozzle life, reduces labor, lowers defect rates, improves productivity	-

Operational Benefits

Reduces nozzle replacement costs by extending service life
Eliminates dedicated cleaning personnel through full automation
Significantly decreases product defect rates in SMT production
Maintains nozzles in like-new condition for optimal performance
