Model Number UH02633 FUJI Nxt H02 Head Ideal for SMT Assembly Needs
Product Specifications
| Attribute |
Value |
| Brand Name |
FUJI |
| Product Name |
NXT H02 Head |
| Model Number 1 |
UH02633 |
| Model Number 2 |
UH02610 |
| Model Number 3 |
UH02604 |
| Condition |
Original New/Used Original |
Product Overview
The FUJI Nxt H02 Head is a crucial component in modern SMT (Surface Mount Technology) assembly lines, known for its precision, speed, and reliability. Designed for FUJI's NXT series placement machines, the H02 Head ensures efficient placement of small components, contributing to overall productivity and quality.
Key Features and Capabilities
- Engineered for high-speed and accurate placement of small components
- Supports component size range down to 0402 (01005")
- Compatible with FUJI AIM, AIMEX, and NXT machines
- Placement accuracy of +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
- Throughput of up to 26,000 chips per hour (CPH)
- Can handle next-generation components (0201 mm parts)
Performance Highlights
The FUJI Nxt H02 Head delivers exceptional performance with:
- Super-high-speed operation for high-volume manufacturing
- Precision placement critical for electronic circuit reliability
- Consistent performance built to FUJI's quality standards
- Flexible design adaptable to various production needs
Accessories and Options
Enhance the capabilities of the FUJI Nxt H02 Head with:
- Various nozzle types for different component sizes and shapes
- Available spare parts to minimize downtime
Applications
Ideal for:
- High-volume manufacturing environments
- Small component placement in compact devices
- Diverse SMT production lines

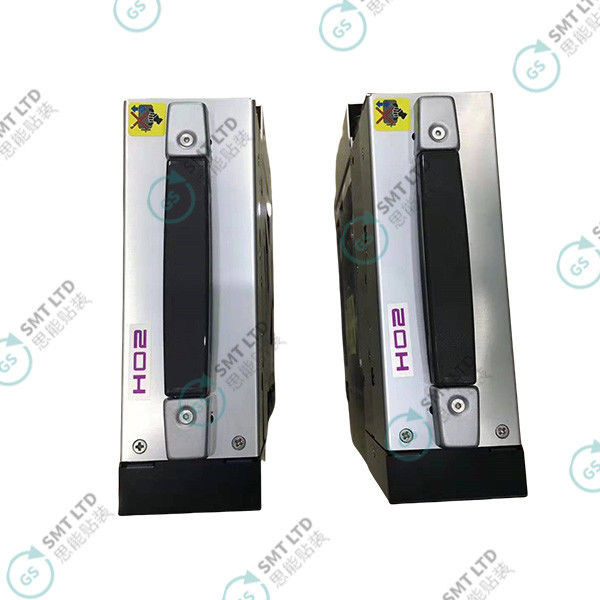

Product Images
Frequently Asked Questions
What is the primary advantage of the FUJI Nxt H02 Head?
The primary advantage is its ability to place small components at high speeds with great precision, making it ideal for high-volume manufacturing.
What is the placement accuracy of the FUJI Nxt H02 Head?
The placement accuracy (Fiducial mark standard) is +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00.
What types of machines are compatible with the FUJI Nxt H02 Head?
The FUJI Nxt H02 Head is compatible with FUJI AIM, AIMEX, and NXT machines.
What kind of components can the FUJI Nxt H02 Head handle?
The FUJI Nxt H02 Head can handle very small components, down to 0402 (01005").
Is it possible to enhance the functionality of the FUJI Nxt H02 Head with accessories?
Yes, various nozzles are available to accommodate different component sizes and shapes, enhancing its versatility.
