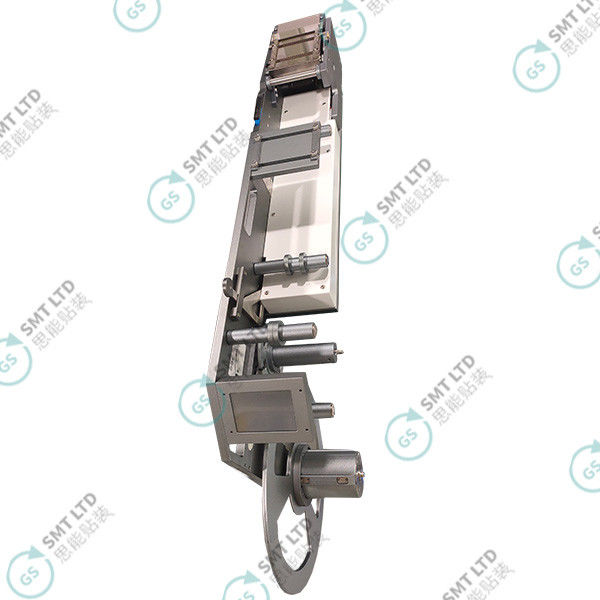

GS-HQ90 Label Feeder 24V DC 2A Max Current SMT Feeder

Name: GS-HQ90 Label Feeder 24V DC 2A Max Current SMT Feeder
Brand: Global Soul Limited
SKU: GS-HQ90
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS

Model Number: GS-HQ90

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/PCS

Price: USD+negotiable+pcs

Packaging Details: 1000*150*90

Delivery Time: 1-3 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Label Feeder GS-HQ90, 2A Label Feeder, DC 24V Label Feeder


Model:	GS-HQ90	Overall Dimensions (length * Width * Height):	930130/72390mm( There Are Two Widths: 130mm And 72mm)
Weight:	13/9.5(The 130mm Style Weighs 13KG The 72mm Style Weighs 9.5KG)	Working Voltage:	DC 24V
Gas Source Requirements:	No	Maximum Current:	2A
Feeding Speed:	Adjustable At 35mm/s	Operation Panel:	3.5-inch Touchscreen
Feeding Accuracy:	+0.3mm	Condition:	New

Model:	GS-HQ90
Overall Dimensions (length * Width * Height):	930130/72390mm( There Are Two Widths: 130mm And 72mm)
Weight:	13/9.5(The 130mm Style Weighs 13KG The 72mm Style Weighs 9.5KG)
Working Voltage:	DC 24V
Gas Source Requirements:	No
Maximum Current:	2A
Feeding Speed:	Adjustable At 35mm/s
Operation Panel:	3.5-inch Touchscreen
Feeding Accuracy:	+0.3mm
Condition:	New

Product Description

2A Maximum Current Label Feeder GS-HQ90 DC 24V Working Voltage

Product Specifications

Attribute	Value
Model	GS-HQ90
Overall dimensions (length × width × height)	930 × 130/72 × 390mm (Two width options: 130mm and 72mm)
Weight	13kg (130mm style) / 9.5kg (72mm style)
Working voltage	DC 24V
Gas source requirements	None required
Maximum current	2A
Feeding speed	Adjustable at 35mm/s
Operation panel	3.5-inch touchscreen
Feeding accuracy	±0.3mm
Condition	New

Product Description

The GS-HQ90 Label Feeder is a precision component supply device designed to accurately strip and feed labels from rolls at specified intervals to surface mount technology (SMT) machines.

Tape Specifications

Tape width: Supports tape widths up to ≤85mm
Material spacing: Maintain 2-3mm distance between materials on all sides with 5mm blank areas on both sides
Item density: Limit to 6 items per row (higher density increases potential for abnormalities)
Base paper thickness: Optimal at 0.05mm
