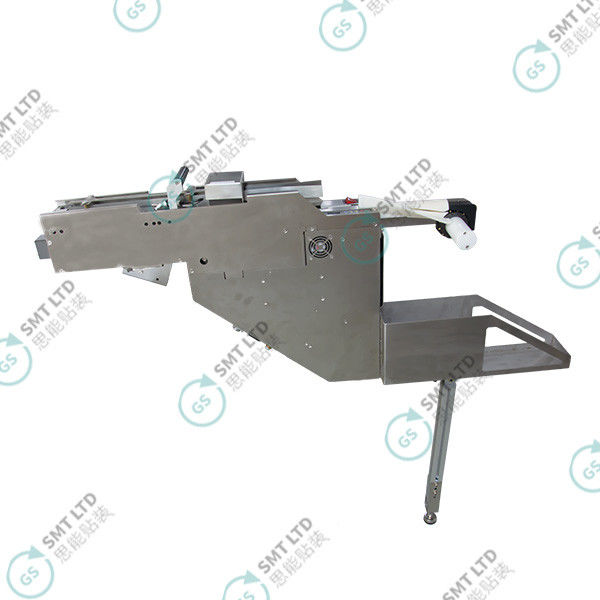

GS-RAZ2304 Large Electrolytic Capacitor Feeder 20KG for SMT

Name: GS-RAZ2304 Large Electrolytic Capacitor Feeder 20KG for SMT
Brand: Global Soul Limited
SKU: GS-RAZ2304
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS

Model Number: GS-RAZ2304

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 1350*150*1200mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                GS-RAZ2304 Electrolytic Capacitor Feeder, Large Electrolytic Capacitor Feeder, GS-RAZ2304


Model:	GS-RAZ2304	External Dimensions (length * Width * Height）:	1152mm122.5mm900±40mm[For Details, Please Refer To The Size Diagram]
Weight:	20KG	Working Voltage:	Ac 220V
Maximum Power:	400W[Direct Vibration: 330W]	Feeding Speed:	1.5s/Pcs
Drive Mode:	Electric[ Blow Air To Assist In Throwing The Waste Tape]	Operation Panel:	0.96-inch TFT Color Screen 80*160 Pixels
Error In The Length Of The Material Cutting Feet:	±0.1mm	Applicable To The Hole Spacing Of The Tape:	12.7mm/15mm[ Parts Need To Be Replaced]
Applicable Material Body Height:	≤47mm	Applicable Material Pin Diameter:	≤0.8mm
Pin Span:	≤30mm	Function Of Cutting Waste Tape:	By Default, There Is
The Number Of Times The Cutter Is Used:	≥1 Million

Model:	GS-RAZ2304
External Dimensions (length * Width * Height）:	1152mm122.5mm900±40mm[For Details, Please Refer To The Size Diagram]
Weight:	20KG
Working Voltage:	Ac 220V
Maximum Power:	400W[Direct Vibration: 330W]
Feeding Speed:	1.5s/Pcs
Drive Mode:	Electric[ Blow Air To Assist In Throwing The Waste Tape]
Operation Panel:	0.96-inch TFT Color Screen 80*160 Pixels
Error In The Length Of The Material Cutting Feet:	±0.1mm
Applicable To The Hole Spacing Of The Tape:	12.7mm/15mm[ Parts Need To Be Replaced]
Applicable Material Body Height:	≤47mm
Applicable Material Pin Diameter:	≤0.8mm
Pin Span:	≤30mm
Function Of Cutting Waste Tape:	By Default, There Is
The Number Of Times The Cutter Is Used:	≥1 Million

Product Description

Large Electrolytic Capacitor Feeder GS-RAZ2304

Applicable Material Pin Diameter ≤0.8mm | 20KG Capacity

Product Specifications

Attribute	Value
Model	GS-RAZ2304
External dimensions (L×W×H)	1152mm × 122.5mm × 900±40mm
Weight	20KG
Working voltage	AC 220V
Maximum power	400W (Direct vibration: 330W)
Feeding speed	1.5s/Pcs
Drive mode	Electric with air assist for waste tape removal
Operation panel	0.96-inch TFT color screen (80×160 pixels)
Material cutting length error	±0.1mm
Applicable tape hole spacing	12.7mm/15mm (parts replacement required)
Max material body height	≤47mm
Max material pin diameter	≤0.8mm
Max pin span	≤30mm
Waste tape cutting function	Standard feature
Cutter durability	≥1 million cycles

Product Description

The GS-RAZ2304 Vertical Feeder is an advanced electronic component supply device designed for high-efficiency production lines. It precisely maintains component intervals and delivers vertically tape-packaged electronic components one by one at specified times, while automatically cutting lead wires for seamless integration with insertion machines.

For special material dimensions or custom requirements, please contact our technical team for consultation. We provide tailored solutions and can customize exclusive feeders to meet your specific production needs.
