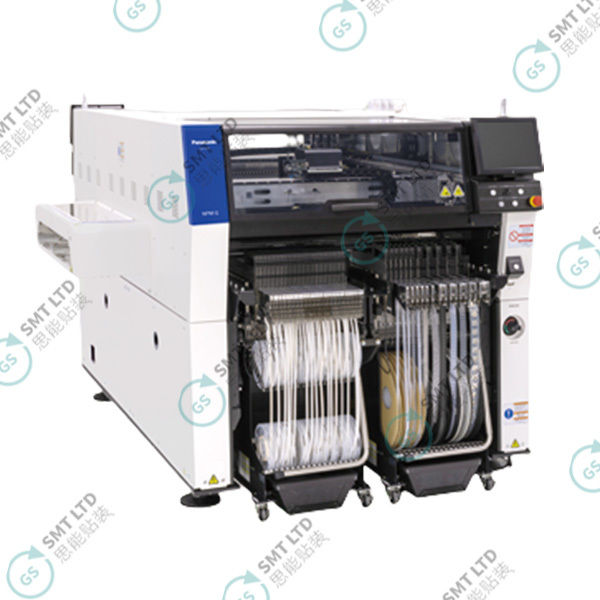

SMT Pick And Place Machines NPM-GW Modular Placement Machine

Name: SMT Pick And Place Machines NPM-GW Modular Placement Machine
Brand: Global Soul Limited
SKU: NPM-GW
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Brand Name: Panasonic

Model Number: NPM-GW

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 2000*800*1200mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Placement Accuracy (Cpk≥1):	±25μm/chip	Max.speed (per 1 Head):	52000 Cph(0.070s/chip)
Maximum PCB Dimensions(For Single Conveyor):	L760×W 687 Mm※Slide Mounting:1,050 Mm/1,260 Mm	Component Dimensions(mm):	0201chip～L120×W90×T40/T45 Or L150×W25×T40/T 45
PCB Transfer Lane:	Single/Dual	Component Supply:	Taping/Stick/Tray
Maximum Number Of Components Supply(Tape Width:4 Mm,8 Mm Calculation):	136	Number Of Heads:	2
Placement Heads:	16/8/3	Condition:	Used Original

Placement Accuracy (Cpk≥1):	±25μm/chip
Max.speed (per 1 Head):	52000 Cph(0.070s/chip)
Maximum PCB Dimensions(For Single Conveyor):	L760×W 687 Mm※Slide Mounting:1,050 Mm/1,260 Mm
Component Dimensions(mm):	0201chip～L120×W90×T40/T45 Or L150×W25×T40/T 45
PCB Transfer Lane:	Single/Dual
Component Supply:	Taping/Stick/Tray
Maximum Number Of Components Supply(Tape Width:4 Mm,8 Mm Calculation):	136
Number Of Heads:	2
Placement Heads:	16/8/3
Condition:	Used Original

Product Description

Key features and functions
1. Support large components and large PCBs to meet the increasing demand for Electric Vehicles (EV) and DX
2. 5M process control “APC-5M” for good production and stable operation
3. Various skill-less and manpower-saving features including Auto Setting Feeder
* 5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement

Panasonic Modular Placement Machine NPM-GW Features

Modular mounter with wide range of components/PCBs compatibility

The basic performance of this modular mounter has been improved by renewing the core units, such as the placement head and recognition camera. It now supports a wide range of components and various components supply configurations, and can also handle larger PCBs. It also supports various automation and manpower-saving functions, including the Auto Setting Feeder (ASF), which automates the components supply operation, to flexibly meet the requirements of each mounting site.

Supported components range

SMT Pick And Place Machines NPM-GW Modular Placement Machine 0

Maximum speed and placement accuracy

SMT Pick And Place Machines NPM-GW Modular Placement Machine 1

Supported PCB size

SMT Pick And Place Machines NPM-GW Modular Placement Machine 2

Configuration example

Example configuration

SMT Pick And Place Machines NPM-GW Modular Placement Machine 4

Component supply units
