High Speed SMT PCB Manufacturing
, FUJI SMT PCB Manufacturing
, SMT Pick And Place PCB Assembly Equipment
Model: |
M3II |
Series: |
Fuji NXT Series |
Category: |
SMT (Surface Mount Technology) Pick-and-place Machine |
Accuracy: |
±0.03 Mm (placement Precision, Using Vision Recognition) |
Type: |
Intelligent, Automatic, And Manual Exchangeable Feeder System |
Number Of Feeders: |
Supports Up To 130 Feeders Per Module Depending On Configuration |
Feeder Types: |
Tape Feeders, Tray Feeders, Bulk Feeders, And Stick Feeders |
Maximum PCB Size: |
508 Mm X 610 Mm (with Dual-lane Configuration) |
Minimum PCB Size: |
50 Mm X 50 Mm |
PCB Thickness: |
Supports A Wide Range Of PCB Thicknesses From 0.3 Mm To 4.0 Mm |
Multi-Nozzle Placement Heads: |
Available In Different Configurations To Meet Various Production Requirements |
Types Of Heads: |
Standard, High-speed, Or Multi-function Heads That Can Place Components At Different Speeds And Sizes |
Power Supply: |
3-phase, 200-230V AC, 50/60Hz |
Energy Efficiency: |
Designed For Optimized Power Usage To Reduce Operational Costs |
Machine Dimensions: |
Approximately 1,200 Mm (L) X 1,200 Mm (W) X 1,600 Mm (H) |
Weight: |
Approx. 1,200 Kg (depending On Configuration) |

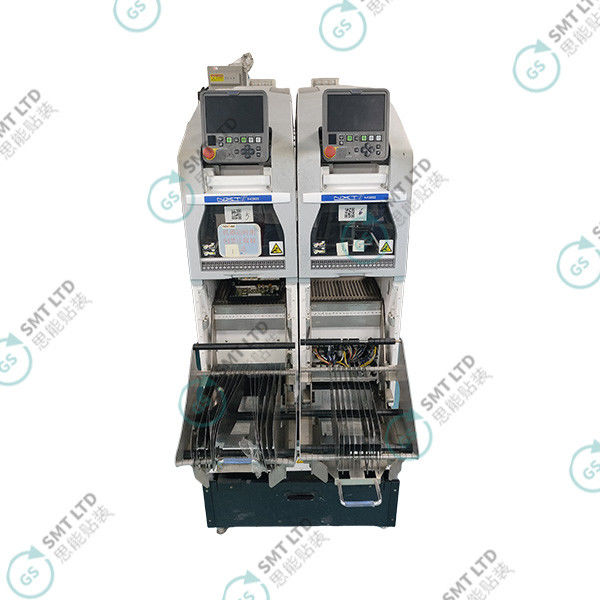

FUJI NXT M3II High Speed SMT PCB Manufacturing Pick And Place PCB Assembly Equipment
The FUJI NXT M3II is a high-performance, modular SMT (Surface Mount Technology) pick-and-place machine widely used in electronics manufacturing for mounting components on printed circuit boards (PCBs).
Machine Functions
- High-Speed Placement: Capable of placing a wide range of components at high speed with precision, from microchips to larger components.
- Modular Configuration: Part of Fuji's NXT series, allowing customizable modules based on production needs for scalability and flexibility.
- Multi-Nozzle Heads: Equipped with multiple nozzles enabling simultaneous handling of different components for increased efficiency.
- Component Versatility: Handles both standard surface-mount devices (SMDs) and odd-shaped components for broad application range.
- Automatic Feeder Exchange: Supports automatic and manual feeder exchange to reduce downtime and enhance productivity.
- Camera Inspection: Uses vision system with cameras to align components accurately and verify placement before soldering.
- Inline Operation: Designed for production line integration with other SMT machines for continuous PCB assembly.
- Placement Accuracy: Advanced control and vision systems ensure precise component placement on PCBs.
Key Features
- Compact Design: Space-efficient footprint ideal for production lines.
- Smart Factory Compatibility: Supports Industry 4.0 technologies including data collection and process optimization.
- User-Friendly Interface: Intuitive controls for quick setup and production monitoring.
- Intelligent Feeders: Quick recognition of component types minimizes selection errors.
- Multi-Function Heads: Interchangeable heads perform various functions including component recognition and placement.
- Quick Changeover: Fast adaptation between different PCB assembly types.
- Energy Efficiency: Advanced control systems optimize power consumption for cost savings.
Additional Capabilities
- Dual Lane Configuration: Parallel production setup for different PCBs enhances throughput.
- PCB Handling: Flexible options support both large and small boards for various design requirements.
The FUJI NXT M3II is favored for its adaptability, high speed, and precision, making it ideal for large-scale PCB manufacturing in industries like automotive, consumer electronics, and telecommunications.
