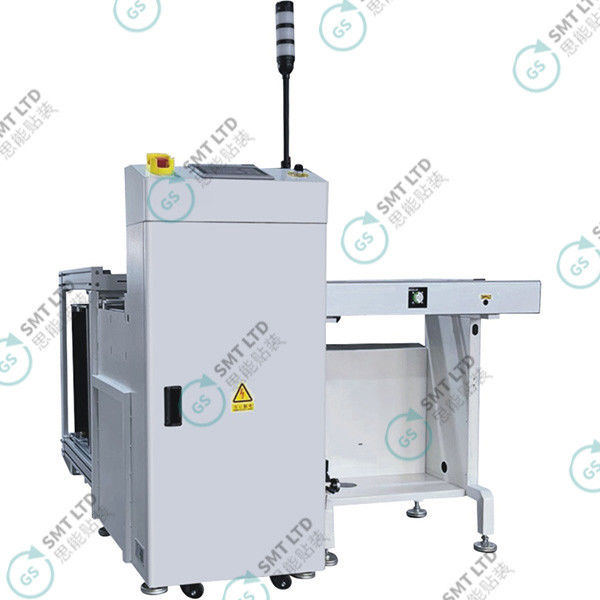

ZL Series Vertical PCB Unloader with 220V Power 6s Feed Time

Name: ZL Series Vertical PCB Unloader with 220V Power 6s Feed Time
Brand: Global Soul Limited
SKU: ZL-3BM / ZL-3BL / ZL-3BLL / ZL-3BXL
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS

Model Number: ZL-3BM / ZL-3BL / ZL-3BLL / ZL-3BXL

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 1560*1790*1400mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                smt pcb magazine loader, smt pcb handling machine, automatic pcb magazine loader


Description:	For Automatic Collection Of Circuit Boards From The Production Line	No. Of Magazine:	Upper Conveyor: 1nos.Lower Conveyor:2nos.
Time For Feed PCBs:	Approx. 6 Seconds Or Specified By Customer	Magazine Change Over Time:	Approx.35 Seconds Or Specified By Customer
Indexing Pitch:	10,20,30,40 Mm Pitch Or Specified By Customer	Power Supply And Electric Load:	220V(AC,SP)300VA Max
Air Pressure And Air Flow:	4~6bar, Up To 0.1	Thickness Of PBCs:	0.6mm Min

Description:	For Automatic Collection Of Circuit Boards From The Production Line
No. Of Magazine:	Upper Conveyor: 1nos.Lower Conveyor:2nos.
Time For Feed PCBs:	Approx. 6 Seconds Or Specified By Customer
Magazine Change Over Time:	Approx.35 Seconds Or Specified By Customer
Indexing Pitch:	10,20,30,40 Mm Pitch Or Specified By Customer
Power Supply And Electric Load:	220V(AC,SP)300VA Max
Air Pressure And Air Flow:	4~6bar, Up To 0.1
Thickness Of PBCs:	0.6mm Min

Product Description

SMT Peripheral Equipment ZL series Vertical Entry Unloader

Key Features

Perpendicular output direction reduces production line length
Specialized circuit board loading device for SMT production lines
PLC controlled with color HMI operating system
Adjustable stepping motor push plate structure
Precision auxiliary positioning braking system for fast, accurate operation
Multiple electrical circuit protection for enhanced safety
Comprehensive alarm system with text prompts for easy maintenance
Standard SMEMA signal communication compatibility
Optional AGV docking functionality

GSSMT, SMT vertical entry unloader, Vertical PCB unloader, Vertical magazine unloader, Vertical SMT unloader, High-speed vertical unloader, PCB vertical entry unloader, Vertical entry unloader machine, Compact vertical entry unloader, Vertical PCB magazine unloader, Fully automatic vertical unloader, SMT vertical magazine unloader, Vertical entry PCB handling, Vertical unloader for SMT production, PCB vertical unloader system, Vertical SMT assembly unloader, Advanced vertical entry unloader
