SMT Loading Unloading Rack 460x400x563mm Adjustable 50-330mm

Name: SMT Loading Unloading Rack 460x400x563mm Adjustable 50-330mm
Brand: Global Soul Limited
SKU: GS460400563
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS

Model Number: GS460400563

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 500*150*600mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Adjustable SMT Loading Rack, SMT Loading And Unloading Rack


Product Name:	SMT Loading And Unloading Rack	Product Specifications:	460400563mm
Adjustable Range:	460*(50 - 330)mm	Reference Positions:	A 34mm, B 34mm
Product Material:	PP Side Panel. Galvanized Upper And Lower Base Plates	Side Panel Slot Width:	5mm
Side Panel Slot Width:	5mm	Side Panel Slot Depth:	3mm
Side Panel Structure:	5 Pieces Assembled	Slot Spacing/Number:	10mm / 50 PCS
Condition:	New	Side Panel Slot Depth:	3mm

Product Name:	SMT Loading And Unloading Rack
Product Specifications:	460400563mm
Adjustable Range:	460*(50 - 330)mm
Reference Positions:	A 34mm, B 34mm
Product Material:	PP Side Panel. Galvanized Upper And Lower Base Plates
Side Panel Slot Width:	5mm
Side Panel Slot Width:	5mm
Side Panel Slot Depth:	3mm
Side Panel Structure:	5 Pieces Assembled
Slot Spacing/Number:	10mm / 50 PCS
Condition:	New
Side Panel Slot Depth:	3mm

Product Description

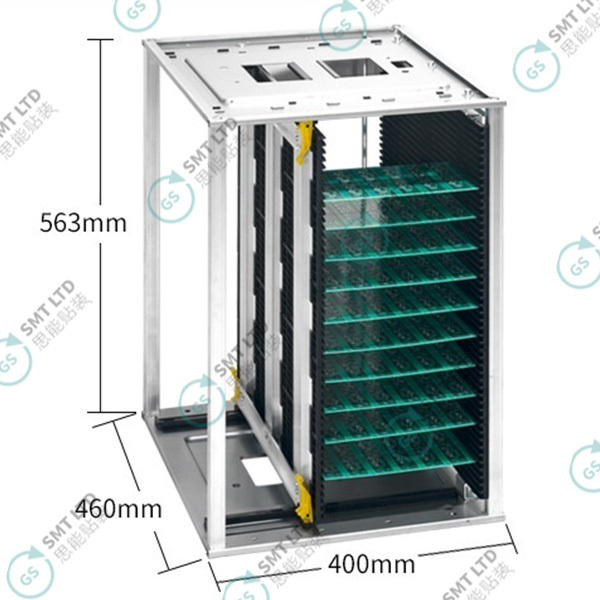

460*400*563mm SMT Loading And Unloading Rack and Adjustable Range 50-330mm for SMT Machines

Product Specifications

Attribute	Value
Product Name	SMT Loading and Unloading Rack
Product Specifications	460400563mm
Adjustable Range	460*(50 - 330)mm
Reference Positions	A 34mm, B 34mm
Product Material	PP side panel. Galvanized upper and lower base plates
Side Panel Slot Width	5mm
Side Panel Slot Depth	3mm
Side Panel Structure	5 pieces assembled
Slot Spacing/Number	10mm / 50 PCS
Condition	New

Product Images

Installation Instructions

Take out the accessories and check if they are all present.
Press down the gear bar firmly.
Secure the four vertical columns with screws.
Align the side plates with the holes and tighten the screws.
Align the bottom of the movable side plate with the circular holes of the clips.
Install the base plate, push the round heads of the clips upwards and then move it.
Install the stopper on the spring part downwards, and the installation is complete.
