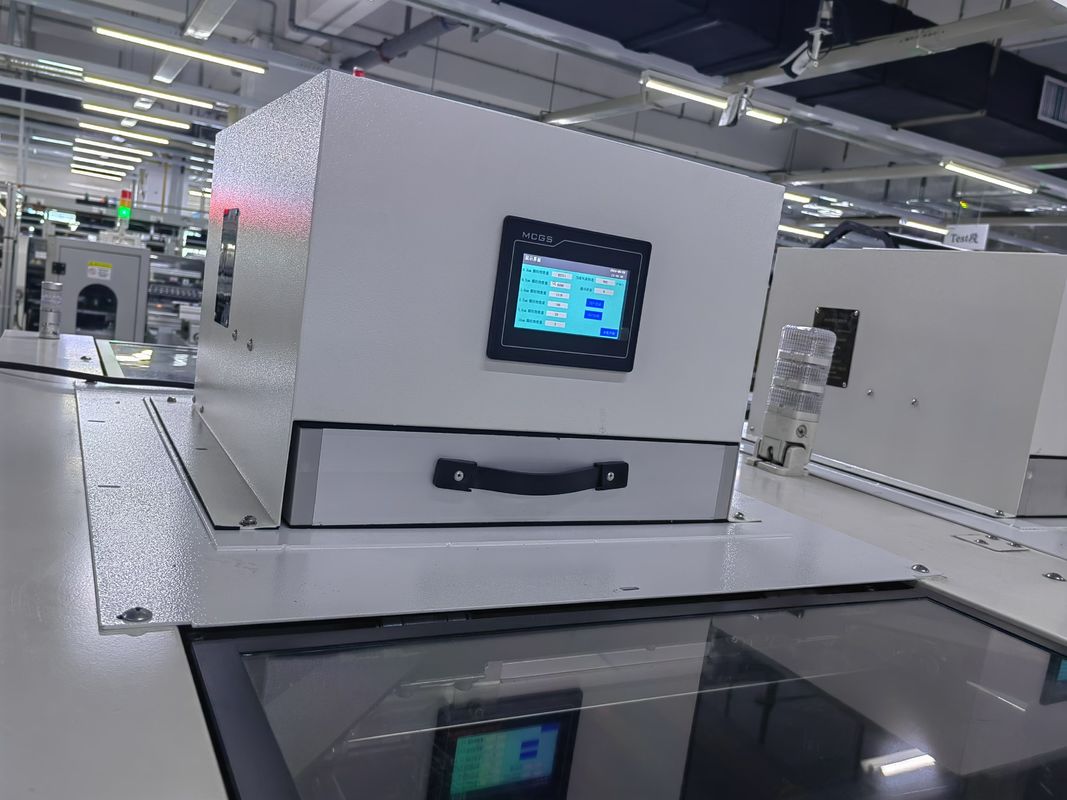

SMT Dust Purification Processor for Chip Mounting Machines

Name: SMT Dust Purification Processor for Chip Mounting Machines
Brand: Global Soul Limited
SKU: gsair
Price: 3000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: gs

Model Number: gsair

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 3000USD

Packaging Details: L407*W530*H350mm

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                SMT Dust Purification Processor, Dust Purification Processor FFU


Product Description

SMT Patch Machine Online Dust Purification Processor FFU

Device Functions

Creates a clean space in the SMT machine mounting area, preventing dust accumulation on solder paste surfaces
Reduces defects caused by precision components in reflow furnaces
Maintains constant temperature at mount head to prevent overheating and mechanical failure
Creates positive pressure environment in mount area for localized dust control
Reduces wear on machine components (screws, pneumatic elements, solenoid valves, nozzle rods)
Lowers maintenance costs and improves equipment operation rate

Equipment Features

Real-time working environment monitoring
6-speed intelligent automatic adjustment for energy efficiency
MES and Kanban system integration for remote management
Data recording, tracing, and chart generation
Dual filter system for easy maintenance and lower costs

Compatible Devices

CM402/602, NPM1/2/3/DX/W/W2/TT
NXT M3/M6/1/2/3 XP141/142/XPF
YS12/24 YSM10/20
GXH1/3 G5/G5S F8/F8S

Applications

Effective dust removal for high-cleanliness production environments in medical, electronics, food, and laboratory industries.

The Impact of Dust on SMT Machines

Contaminates lubricating oil, increasing friction and component wear
Causes abrasive effects on moving parts, accelerating machine aging
Impairs heat dissipation, leading to temperature rise and reduced lifespan
Affects electronic components (chips, circuit boards) efficiency

The online dust purification processor effectively eliminates these issues at their source.

Technical Specifications

Parameter	Specification	Parameter	Specification
Speed Control Mode	Automatic	Particle Detection Range	0.3-10um
Speed Adjustment Levels	6-speed	Purification Efficiency	99.99% at 0.3um
Maximum Speed	1710 RPM	Sampling Period	1 second
Noise Level	<65dBA	Particle Sizes	0.3/0.5/1.0/3.0/5.0/10um
Power Supply	220V 50-60Hz	Cleanliness Class	100 to 1,000,000 class
Power Consumption	170W	Compliance Standards	ISO 21501-4/JJF 1190-2008
Dimensions (L×W×H)	407×530×350mm	Operating Environment	-15-60℃; 0-95%RH
Weight	Approx. 20kg	Concentration Resolution	1ug/m³
Communication	Modbus TCP
