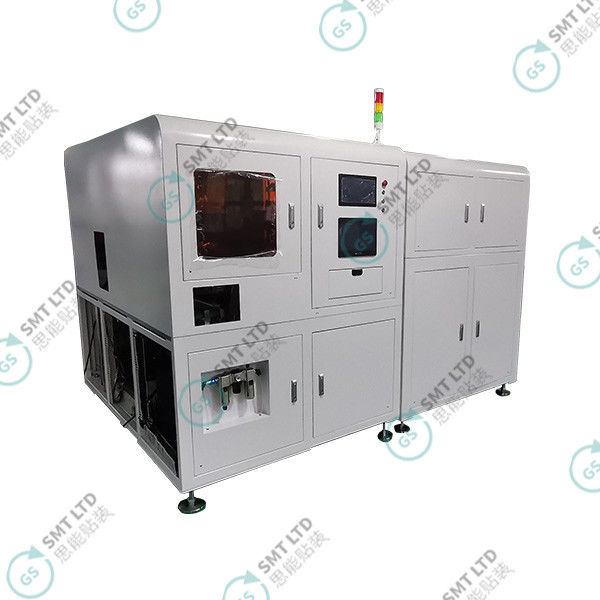

SMT Setting Machine 2800x2000x1800mm for PCB Tray Feeding

Product Details

Place of Origin: China

Brand Name: GS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 3000*2100*1900mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                SMT Setting machine


Overall Size:	280020001800mm	Suitable For PCB Board Size:	114808MM (size Is Not Limited, Other Sizes According To Customer Requirements)
Suitable For Tray Size:	40235324 (length * Width * Height) (size Is Not Limited, Other Sizes Customized According To Customer Requirements)	Accuracy:	+/-0.5mm (without Visual Positioning); +/-0.1mm (with Visual Positioning)

Overall Size:	280020001800mm
Suitable For PCB Board Size:	114808MM (size Is Not Limited, Other Sizes According To Customer Requirements)
Suitable For Tray Size:	40235324 (length * Width * Height) (size Is Not Limited, Other Sizes Customized According To Customer Requirements)
Accuracy:	+/-0.5mm (without Visual Positioning); +/-0.1mm (with Visual Positioning)

Product Description

SMT Setting Machine 2800*2000*1800mm

Product Description

This automatic tray equipment is a multi-axis servo system developed for multi-tray feeding systems in the SMT industry. Designed for automatic placement machines, detection machines, and dispensing machines, it features advanced automation capabilities for efficient production workflows.

Primary Applications

The setting machine provides automatic tray switching, feeding, and recovery functions. It is also suitable for various processing machines including CNC lathes, grinding machines, drilling machines, and milling machines that require automated loading/unloading systems.

Key Features

Electrostatic removal device at entrance reduces bad patches and electrostatic damage during mounting
Counting function and numerical control speed display
PCBA turn-over function with 180° rotation capability on loading platform
Scanning code functionality with MES/ERP system integration
NG board storage capacity for multiple boards
AGV interface for automated guided vehicle connectivity
Rotary TRAY tray system for continuous manipulator operation
4-station rotating magazine with 160 blister disk capacity (402*353*24mm)
Universal adjustable vacuum suction for compatibility with various product sizes
Modular design with full closed-loop control for high reliability
