Highlight:

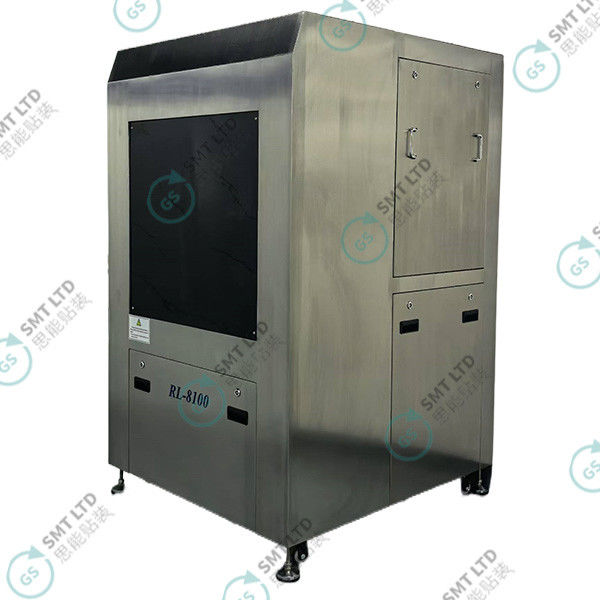

Electric Steel Mesh Cleaning Machine
, Mesh Cleaning Machine 25KW
Applicable Steel Mesh Size: |
L750 × W750 × H40(mm) [large Size Needs To Be Customized] |
Equipment Dimensions: |
L1220*W1120*H1850 (mm) |
Maximum Volume Of Liquid Tank: |
50L*2PCS |
Optimal Liquid Usage: |
40L*2PCS |
Cleaning, Rinsing, Drying Method: |
Left And Right Mobile High Pressure Spray Cleaning + High Pressure Hot Air Cutting (optional Super Model) |
Cleaning Solution Isolation Time: |
40 To 60S |
Cleaning Time: |
2-5min |
Drying Time: |
2-5min |
Filtration System (Level 1): |
Level 1 Filter Element Filtration: (Filter Impurities And Labels) |
Filtration System (secondary): |
Secondary Filter Filter: (filter Solder Paste And Rosin Particles) |
Cleaning Liquid Recovery Filter (Level 3): |
1μm (Filter Particles: Solder Paste, Rosin, Red Glue And Pollutants) |
Rinse Liquid Discharge Filtration (Level 3): |
5μm (filter Particles: Solder Paste, Rosin, Red Glue And Pollutants) Solution |
Body Heating Temperature: |
Room Temperature ~ 60℃ (temperature Can Be Set) |
Electric External Air Source: |
0.4 ~ 0.6 (Mpa) |
Water Pressure: |
0.2 ~ 0.3(Mpa) |
Exhaust Port Size: |
Φ125×H25(mm) |
Power Supply: |
AC380V 50HZ |
The Total Power: |
25KW |
Net Weight: |
About 580Kg |
Condition: |
Original New |
Electric Steel Mesh Cleaning Machine 25KW
Machine Characteristics
- High pressure spray system designed for water-based cleaning of screen boards, misprint boards, and printing machine scrapers
- Dual liquid tank system with heating capability for complete cleaning, rinsing, and hot air drying
- Comprehensive process flow: cleaning → chemical isolation → rough rinsing (open/closed loop) → fine rinsing (open/closed loop) → drying
- Advanced touch screen interface with program file saving for simplified operation
- System counting function tracks cleaning cycles and filtration counts automatically
- Real-time monitoring of liquid and pump pressure via panel pressure gauges
- Pressure sensor monitoring with alarm system for out-of-range conditions
- Liquid direct reflux system minimizes consumption
- Full stainless steel construction resistant to acidic and alkaline cleaning solutions
- High-efficiency drying system combining high pressure fan with hot air for thorough results
- Economical operation using only 30-120ml liquid per cleaning cycle
- Compressed air recovery system reduces liquid consumption by 50%
