Hanwha SM485P Pick and Place Machine 4 Spindles 12,000 CPH

Name: Hanwha SM485P Pick and Place Machine 4 Spindles 12,000 CPH
Brand: Global Soul Limited
SKU: SM485P
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Samsung

Model Number: SM485P

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 1750*1750*2100mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pick And Place Machines SM485P, Pick And Place Machines Smart


Alignment:	4 Small Fix Camera + 1 Wide Fix Camera	The Number Of Spindles:	4 Spindles X 1 Gantry
Placement Speed:	12,000 CPH (Optimum)	Placement Accuracy Chip:	±50 μm @ Cpk≥ 1.0
Placement Accuracy IC:	±30 μm @ Cpk≥ 1.0	Component Range Small Fix Camera:	0603 ~ □22 Mm
Component Range Wide Fix Camera:	~ □55 Mm, L150 Mm	Component Range Max. Height:	32 Mm (Standard), 42 Mm (Special Order *)
PCB Size (mm) Min.:	L50 X W40	PCB Size (mm) Max.:	~ L460 X W400 (Standard);~ L460 X W280 (Option), ~ L460 X W340 (Option), ~ L610 X W460 (Option)
PCB Thickness (mm):	0.38 ~ 4.2	Feeder Capacity:	120 Ea/112 Ea (Docking Cart)
Weight:	Approx. 1,600 Kg	External Dimension (mm):	L1,650 X D1,679 X H1,993

Alignment:	4 Small Fix Camera + 1 Wide Fix Camera
The Number Of Spindles:	4 Spindles X 1 Gantry
Placement Speed:	12,000 CPH (Optimum)
Placement Accuracy Chip:	±50 μm @ Cpk≥ 1.0
Placement Accuracy IC:	±30 μm @ Cpk≥ 1.0
Component Range Small Fix Camera:	0603 ~ □22 Mm
Component Range Wide Fix Camera:	~ □55 Mm, L150 Mm
Component Range Max. Height:	32 Mm (Standard), 42 Mm (Special Order *)
PCB Size (mm) Min.:	L50 X W40
PCB Size (mm) Max.:	~ L460 X W400 (Standard);~ L460 X W280 (Option), ~ L460 X W340 (Option), ~ L610 X W460 (Option)
PCB Thickness (mm):	0.38 ~ 4.2
Feeder Capacity:	120 Ea/112 Ea (Docking Cart)
Weight:	Approx. 1,600 Kg
External Dimension (mm):	L1,650 X D1,679 X H1,993

Product Description

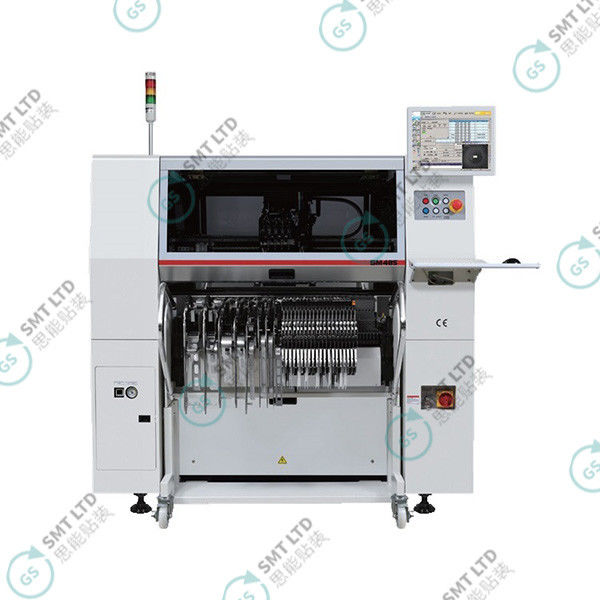

Samsung Pick And Place Machines Smart Hybrid Mounter HANWHA SM485P

Building on the success of the SM451, the Hanwha SM485P is a high-precision, multi-functional placement system featuring four Force Control Precision Heads. This advanced machine can place virtually any component, including radial through-hole, flip chip, COB, POP, through-hole connectors, shield cans, and other odd-form components.

The SM485P utilizes gripper nozzles for components that are difficult to pick with traditional vacuum nozzles. Standard configuration handles parts up to 32mm in height, with an optional upgrade available for components up to 44mm. The system employs four small cameras for on-the-fly alignment, while larger components (up to 150mm in length) are aligned using the stage camera.

Key Features

Gripper nozzles for connector placement
Laser alignment for pin and shield can components
Force Control Z-Axis precision heads
Through-hole component placement capability
0201 component recognition (standard)
120 x 8mm feeder capacity
High placement accuracy: ±30µ@3σ/QFP, ±40µ@3σ/Chip
Compact footprint: 1650mm x 1690mm x 1485mm
Maximum power consumption: 4.7KVA

Available Options

Lifted Lead Check Sensor
Board Height Sensor
Component Value Verifier (LCR Checker)
Intelligent Feeders
Multi Tray Feeders
SMART Feeders (Cut Strips)
Radial Feeder
Bowl Feeder
