Highlight:
SMT Pick And Place Machines
, Full Automatic Solder Paste Printer
, KEYAN-K6 Solder Paste Printer
Machine Performance Visual Alignment Accuracy: |
±0.015mm |
Print Accuracy: |
±0.025mm |
Printing Cycle（Printing Time Is Not Included）: |
＜10sec/P |
Printing Parameters Snap-off: |
0~10mm/S |
Printing Mode: |
Single/double Doctorate Printing |
Scraper Pressure: |
0.5~10kg |
Scraper Angle: |
Standrd Type 45°55°60° |
Print Speed: |
10~200mm/sec |
Printing Strokes: |
50mm~520mm |
The Template Frame Size: |
470mm*370mm~800mm*800mm |
Cleaning Method: |
Dry, Wet And Vacuum |
Vision System Camera: |
High Frame Rate CCD Image Processing Camera |
Identify The Cardinal Point: |
Round, Square, Diamond, Text, Pad And Special-shaped |
Image Method: |
Single Photo, Double Photo, Foolproof (camera Can Be Turned Off Completely) |
Detection Function: |
2D Visual Inspection |
System Functions: |
Online Core |
PCB Base Board Processing Maximum Board Size: |
600*400mm |
Minimum Board Size: |
50*50mm |
Board Thickness: |
0.4~6mm |
Maximum Board Weight: |
10Kg |
Transmission Height: |
900±40mm |
Transport Speed: |
1200mm/sec（MAX） |
Transport Direction: |
One-piece Transport Rails |
Transport Direction: |
(Left-right, Right-left, Left-left, Right-right) Software Control |
Board Clamp: |
Self-controlled Splints |
SUpport Method: |
Magnetic Ejector Pin, Magnetic Ejector Block(manually Adjusted Jacking Platform) |
Device Details Platform Correction Range: |
X:±3mm；Y:±7.5mm；θ:±2° |
Power Supply: |
AC 220V 50/60Hz Single Phase 2KW |
Ambient Humidity: |
25%~65% |
Ambient Temperature: |
-18 ℃ ~50℃ |
Device Dimensions: |
L=1200*W=1300*H=1410mm |
Inlet Pressure: |
4~6kgf/c㎡ |
Changeover Time: |
＜5min |
Device Weight: |
800kg |
SMT Pick And Place Machines Full Automatic Solder Paste Printer KEYAN-K6
Technical Specifications
| Attribute |
Value |
| Machine Performance Visual alignment accuracy |
±0.015mm |
| Print accuracy |
±0.025mm |
| Printing cycle (Printing time not included) |
<10sec/P |
| Printing Parameters Snap-off |
0~10mm/S |
| Printing Mode |
Single/double doctorate printing |
| Scraper pressure |
0.5~10kg |
| Scraper angle |
Standrd type 45°55°60° |
| Print Speed |
10~200mm/sec |
| Printing strokes |
50mm~520mm |
| The template frame size |
470mm*370mm~800mm*800mm |
| Cleaning method |
dry, wet and vacuum |
| Vision system Camera |
High frame rate CCD image processing camera |
| Identify the cardinal point |
Round, square, diamond, text, pad and special-shaped |
| Image method |
Single photo, double photo, foolproof (camera can be turned off completely) |
| Detection function |
2D visual inspection |
| System Functions |
Online Core |
| PCB base board processing Maximum board size |
600*400mm |
| Minimum board size |
50*50mm |
| Board thickness |
0.4~6mm |
| Maximum board weight |
10Kg |
| Transmission height |
900±40mm |
| Transport speed |
1200mm/sec（MAX） |
| Transport direction |
One-piece transport rails |
| Transport Direction |
(Left-right, right-left, left-left, right-right) Software control |
| Board clamp |
Self-controlled splints |
| SUpport method |
Magnetic ejector pin, magnetic ejector block(manually adjusted jacking platform) |
| Device details Platform correction range |
X:±3mm；Y:±7.5mm；θ:±2° |
| Power supply |
AC 220V 50/60Hz single phase 2KW |
| Ambient humidity |
25%~65% |
| Ambient temperature |
-18 ℃ ~50℃ |
| Device dimensions |
L=1200*W=1300*H=1410mm |
| Inlet pressure |
4~6kgf/c㎡ |
| Changeover time |
<5min |
| Device weight |
800kg |
Product Overview

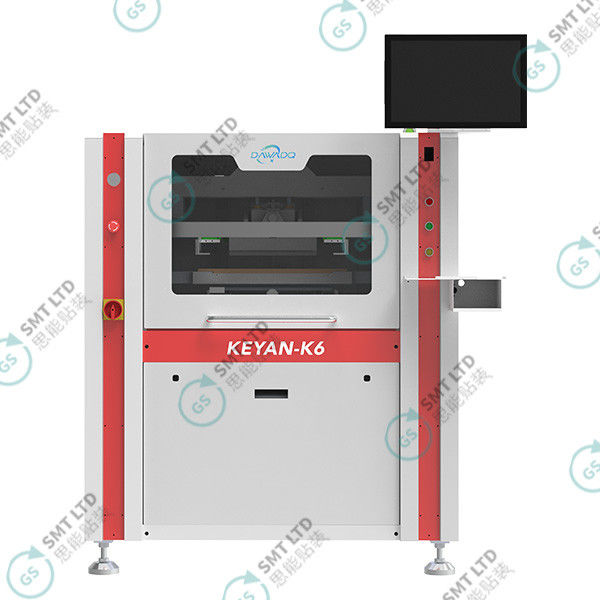

KEYAN-K6 Flexible assistant for multi-variety production
Specializing in automotive electronics and industrial control modules, this high-precision solder paste printer ensures consistent PCB board printing with stable performance, delivering reliable results for high-quality products.
- ±0.015mm high precision: Stabilizes alignment precision, ensures printing consistency and reduces rework rate by 20%.
- Pneumatic control of double scraper: 0.5~10kg pneumatic intelligent pressure adjustment adapts to various solder paste types for more uniform printing results.
- Triple cleaning guarantee: Dry, wet and vacuum cleaning modes extend stencil life by 30% while lowering maintenance costs.
- Stability and durability: Manually adjustable jacking platform increases equipment stability by 25% with easy operation.
