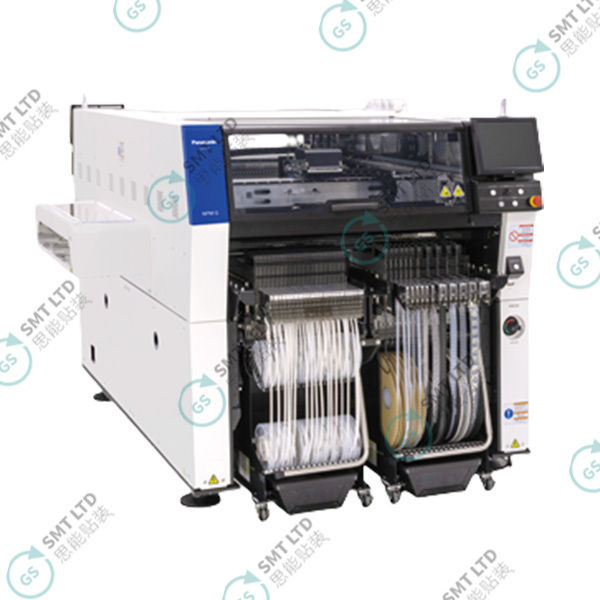

Used Panasonic NPM-GW SMT Pick and Place Machine 52000 CPH

Name: Used Panasonic NPM-GW SMT Pick and Place Machine 52000 CPH
Brand: Global Soul Limited
SKU: NPM-GW
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Brand Name: Panasonic

Model Number: NPM-GW

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD+negotiable+pcs

Packaging Details: 2000*800*1200mm

Delivery Time: 1-7 days

Payment Terms: T/T

Supply Ability: 1+pcs+per days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                SMT Modular placement machine, Used SMT Pick and Place Machine, 0201chip Modular placement machine


Placement Accuracy (Cpk≥1):	±25μm/chip	Max.speed (per 1 Head):	52000 Cph(0.070s/chip)
Maximum PCB Dimensions(For Single Conveyor):	L760×W 687 Mm※Slide Mounting:1,050 Mm/1,260 Mm	Component Dimensions(mm):	0201chip～L120×W90×T40/T45 Or L150×W25×T40/T 45
PCB Transfer Lane:	Single/Dual	Component Supply:	Taping/Stick/Tray
Maximum Number Of Components Supply(Tape Width:4 Mm,8 Mm Calculation):	136	Number Of Heads:	2
Placement Heads:	16/8/3	Condition:	Used Original

Placement Accuracy (Cpk≥1):	±25μm/chip
Max.speed (per 1 Head):	52000 Cph(0.070s/chip)
Maximum PCB Dimensions(For Single Conveyor):	L760×W 687 Mm※Slide Mounting:1,050 Mm/1,260 Mm
Component Dimensions(mm):	0201chip～L120×W90×T40/T45 Or L150×W25×T40/T 45
PCB Transfer Lane:	Single/Dual
Component Supply:	Taping/Stick/Tray
Maximum Number Of Components Supply(Tape Width:4 Mm,8 Mm Calculation):	136
Number Of Heads:	2
Placement Heads:	16/8/3
Condition:	Used Original

Product Description

Used Original NPM-GW Modular Placement Machine SMT Pick And Place Machines For Component 0201chip

Product Specifications

Attribute	Value
Placement accuracy (Cpk≥1)	±25μm/chip
Max.speed (per 1 head)	52000 cph(0.070s/chip)
Maximum PCB dimensions (For Single Conveyor)	L760×W 687 mm※Slide Mounting:1,050 mm/1,260 mm
Component dimensions(mm)	0201chip～L120×W90×T40/T45 or L150×W25×T40/T45
PCB transfer lane	Single/Dual
Component supply	Taping/Stick/Tray
Maximum number of components supply (Tape Width:4 mm,8 mm calculation)	136
Number of heads	2
Placement heads	16/8/3
Condition	Used Original

Key Features

Supports large components and PCBs for Electric Vehicles (EV) and DX applications
5M process control "APC-5M" ensures high production quality and stable operation
Automated features including Auto Setting Feeder for reduced manpower requirements

5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement

Panasonic NPM-GW Modular Placement Machine Overview

This modular mounter features enhanced core units including placement head and recognition camera for improved performance. It offers wide component compatibility, flexible supply configurations, and supports larger PCBs. The system includes automation features like Auto Setting Feeder (ASF) to streamline component supply operations.

Technical Specifications

System Configuration

Component Supply Units
